Product Advantage :

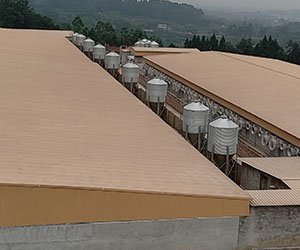

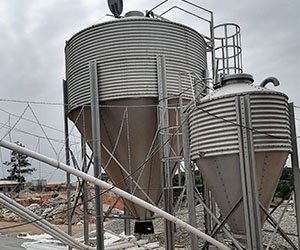

The silo is the basic equipment for storing feed in the farm, which is low-cost, practical, simple and easy to operate. Generally, it can store the feed quantity of the pigsty for 2-3 days, and ensure the safety and freshness of the feed. Generally, the material tower is placed in the open air, which has good sealing, can realize wind, rain and mildew resistance, good corrosion resistance and long service life.
| Model No | Ton | Diameter (m) | Height（m） | Number of outriggers (PCS) | Outrigger Thickness | Outrigger Length (m) | Thickness Of Silo Body（mm） | Thickness Of Upper Cone （mm） | Thickness Of Lower Cone （mm） | Bearing Cube（m³) |
| SQT-GSS001 | 3T | 2.2 | 3.4 | 4 | 2.5mm | 2.7 | 1 | 1 | 1 | 5.6 |
| SQT-GSS002 | 5T | 2.2 | 4.3 | 4 | 2.5mm | 2.7 | 1 | 1 | 1 | 9 |
| SQT-GSS003 | 8T | 2.2 | 5.3 | 4 | 2.5mm | 2.7 | 1 | 1 | 1 | 12.5 |
| SQT-GSS004 | 10T | 2.75 | 5.4 | 6 | 2.5mm | 3.7 | 1 | 1 | 1 | 15.8 |
| SQT-GSS005 | 15T | 2.75 | 6.3 | 6 | 2.5mm | 3.7 | 1 | 1 | 1 | 21.6 |
| SQT-GSS006 | 18T | 3 | 6.6 | 6 | 2.5mm | 4 | 1 | 1 | 1.2 | 25.5 |
| SQT-GSS007 | 20T | 3.26 | 6.6 | 8 | 3.0mm | 4 | 1.2 | 1 | 1.2 | 29.8 |
| SQT-GSS008 | 25T | 3.67 | 6.6 | 8 | 3.0mm | 4 | 1.2 | 1.2 | 1.2 | 38.5 |
| SQT-GSS009 | 30T | 3.67 | 7.5 | 8 | 3.0mm | 4 | 1.2 | 1.2 | 1.2 | 48.1 |
| SQT-GSS010 | 40T | 3.67 | 8.4 | 12 | 3.0mm | 5 | 1.2 | 1.2 | 1.2 | 60 |
