Product Advantages
◆ Hot galvanized sheet, durable.
◆ 410 stainless steel fan blade, long service life.
◆ Automatic opening and closing of shutter, automatic ventilation.

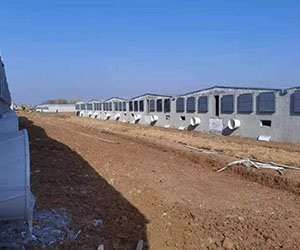

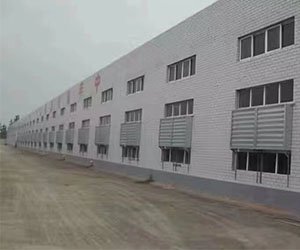

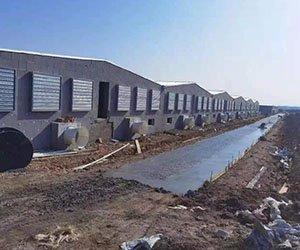

◆ It can be used in farms, factories, plantations and other places requiring ventilation.
| Model No | Dimensions | Material of Shell | Material of blade | Motor power | Weight | Fan blade diameter | Speed | Belt Type |
| SQT-GSF001 | 800×800×400 MM | 275g galvanized sheet | 410 stainless steel | 0.37KW | 26.2KG | 710MM | 650 r/min | A1219 |
| SQT-GSF002 | 900×900×400 MM | 276g galvanized sheet | 410 stainless steel | 0.55KW | 31.9KG | 750MM | 630 r/min | A1300 |
| SQT-GSF003 | 1000×1000×400 MM | 277g galvanized sheet | 410 stainless steel | 0.55KW | 35KG | 900MM | 610 r/min | A1450 |
| SQT-GSF004 | 1100×1100×400 MM | 278g galvanized sheet | 410 stainless steel | 0.55KW | 39.7KG | 1000MM | 600 r/min | A1575 |
| SQT-GSF005 | 1220×1220×400 MM | 279g galvanized sheet | 410 stainless steel | 1.1KW | 47.5KG | 1100MM | 460 r/min | B1930 |
| SQT-GSF006 | 1380×1380×400 MM | 280g galvanized sheet | 410 stainless steel | 1.1KW | 53.7KG | 1250MM | 440 r/min | B2134 |
| SQT-GSF007 | 1530×1530×400 MM | 281g galvanized sheet | 410 stainless steel | 1.5KW | 63.1KG | 1400MM | 440 r/min | B2337 |
